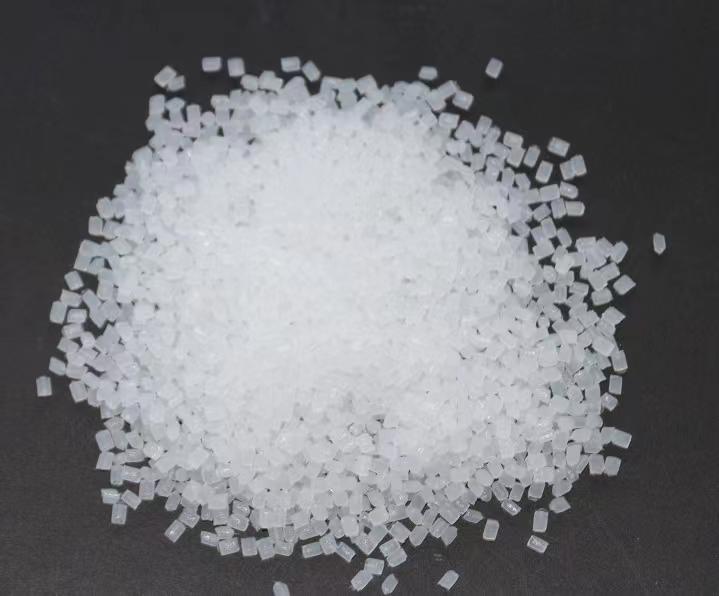

PVDF Chips for Extrusion

Product specifications

Item	Specifications	Test standards
Mass flow rate of the melt g/10min	1.0〜6.0	ASTM  D1238 (230℃，12.5kg)
Tensile strength, MPa	≥35.0	ASTM  D638
Elongation at break, %	≥200	ASTM  D638
Tensile yield strength, Mpa	≥34.0	ASTM  D638
Elongation at yield, %	≥15	ASTM  D638
Normal relative density	1.75〜1.79	ASTM  D792
Hardness (Shore D)	70〜80	ASTM  D2240
Melting point,℃	160〜170	ASTM  D3418



Precautions

1. G601 should be packed in PE bags and then sealed in outer packing bags. Net content of each bag is 25kg. Packing can be done in accordance with user’s requirements as well.

2. G601 should be stored in clean and dry warehouse.

3. Measures should be taken to protect the product from strenuous vibration and moisture when it is being transported.

4. It should be avoided to process and use the product at temperatures high than 370℃ for prevention of poisonous fumes produced from decomposition.
